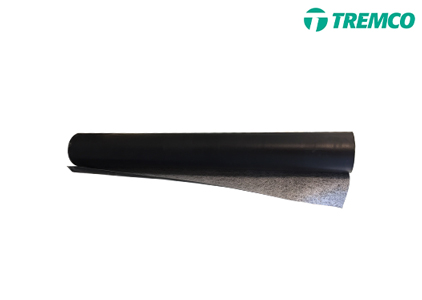

TREMproof Amphibia roll, a self-healing, self-sealing and self-repairing sheet waterproofing membrane.

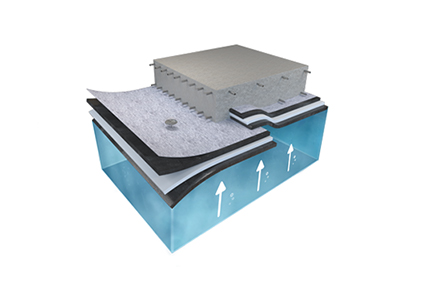

illustration of TREMproof Amphibia's usage and application

jobsite application of TREMproof Amphibia

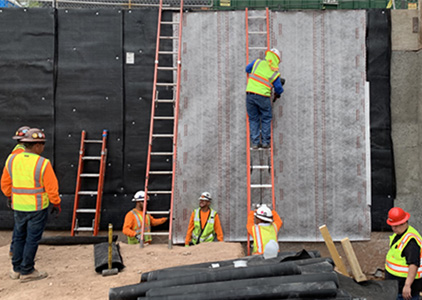

jobsite vertical application of TREMproof Amphibia

TREMproof Amphibia

Sheet-Applied Waterproofing Membrane

TREMproof Amphibia waterproofing membrane is a self-healing, self-sealing and self-repairing sheet waterproofing membrane.

This co-extruded, watertight membrane has three active layers – a watertight EPDM barrier, an active core with the ability to seal when penetrated, and an active barrier which seals the overlap and helps resist lateral movement of water. Also, a non-woven fabric layer promotes the mechanical adhesion of the membrane to the concrete.

During installation, TREMproof Amphibia Grip Tape is used to seal TREMproof Amphibia sheet waterproofing membrane seam overlaps, allowing for the continuous adhesion of the membrane to the concrete.

Basic Uses

TREMproof Amphibia sheet waterproofing membrane is designed for use over lagging on blindside walls, below grade walls, pile caps, grade beams, under slab, and buried forms such as elevator pits.

TREMproof Amphibia: Introduction and Performance Testing

How to Install TREMproof Amphibia Sheet-Applied Waterproofing Membrane

FAQ

What are the targeted applications for the TREMproof Amphibia waterproofing system?

TREMproof Amphibia is ideal for blindside and below slab-on-grade applications, tunnels and elevator pits.
Can TREMproof Amphibia be installed in wet conditions, as well as with saltwater?

The TREMproof Amphibia membrane can be exposed to wet weather during and after installation. However, we recommend that the TREMproof Amphibia Grip Tape be applied in dry conditions to guarantee proper adhesion to the membrane. TREMproof Amphibia is usable in the presence of saltwater.
Does TREMproof Amphibia require a protection course?

TREMproof Amphibia is a durable waterproofing membrane, and typically does not need a protection course under normal conditions.
Can TREMproof Amphibia be installed in submerged conditions?

Yes, it can be installed in submerged conditions, as well as above the water table.
Can TREMproof Amphibia be installed in cold or hot temperatures?

Tremco recommends that TREMproof Amphibia be installed between 0° to 35° C (32° to 95° F).
How much overlap is required for the seams?

The TREMproof Amphibia membrane should overlap 5 to 10 cm (2" to 4”).
Is there a separate TREMproof Amphibia product for horizontal and vertical applications?

TREMproof Amphibia can be installed both horizontally and vertically – only one product is needed for all applications.
Can TREMproof Amphibia be used with Shotcrete applications?

If the recommended Tremco detailing procedure is followed, TREMproof Amphibia can be installed with shotcrete applications.
